Max Plus
Features
- Dynamic/PG Controller
- High performance motor
- Add a crutch box feature
- Seat can be rotated
- Intuitive controls
- Pneumatic tyres for high comfort
- Adjustable flip up and width armrest
- Automatic braking mechanism
- Long travel distance per charge
- Quick and efficient assembly
- Lange reisafstand per acculading

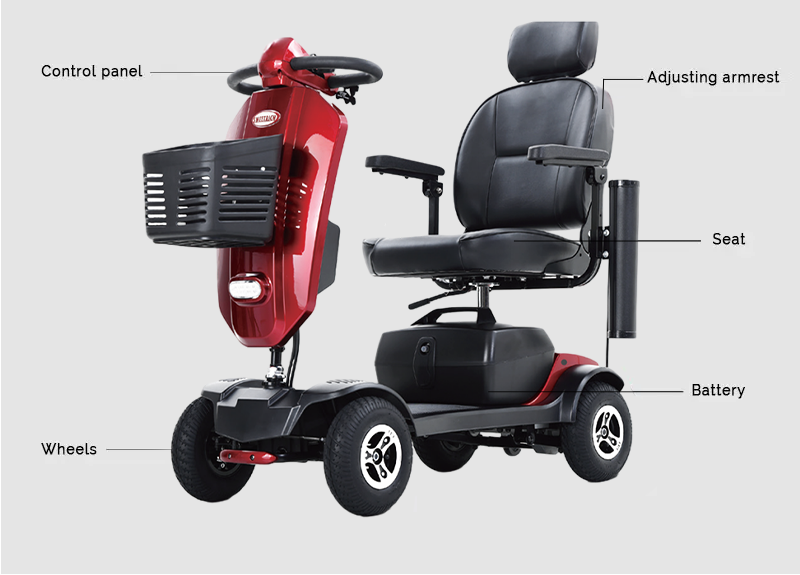

Gallery
Technical Specifications
| Dimensions(L×W×H) | 1110×525×1020(mm)~1030(mm) |
| Max Forward Speed | 8km/h(5mi/h) |
| Max Driving Gradient | 12° |
| Max Driving Range | 15-25km(9.5-15.5miles) |
| Weight Capacity | 136kg(300lbs) |
| Suspensions | Rear |
| Tire Sizes | 9"x3"(Front) 9"x3"(Rear) |
| Brake System | Electromagnetic Brake |
| Batteries | Lead-acid 12V12AH*2pcs (20Ah optional) |
| Charger | DC24V2A AC100-240V |
| Charging Time | 6-8h |
| Motor | 24V/300W |
| Motor Controller | 24V/50A(Dynamic) |
| Heaviest Part | 28.5kg(63lbs) |
*When purchasing an electrically powered vehicle, the buyer must take into account that the specified range is an indication that depends on many factors, including: outside temperature; rider weight and freight; age and condition of the battery(s); tire pressure; state of maintenance of the vehicle; mounted accessories; driving style; set pulling force and maximum speed. The supplier specifies a range that can be achieved under normal circumstances and when applying the legal maximum speed.
Vehicles may be subject to change by the manufacturer without prior notice. Pictures shown may vary in detail. Please contact the dealer network for the latest developments on technical features and vehicle specifications.
